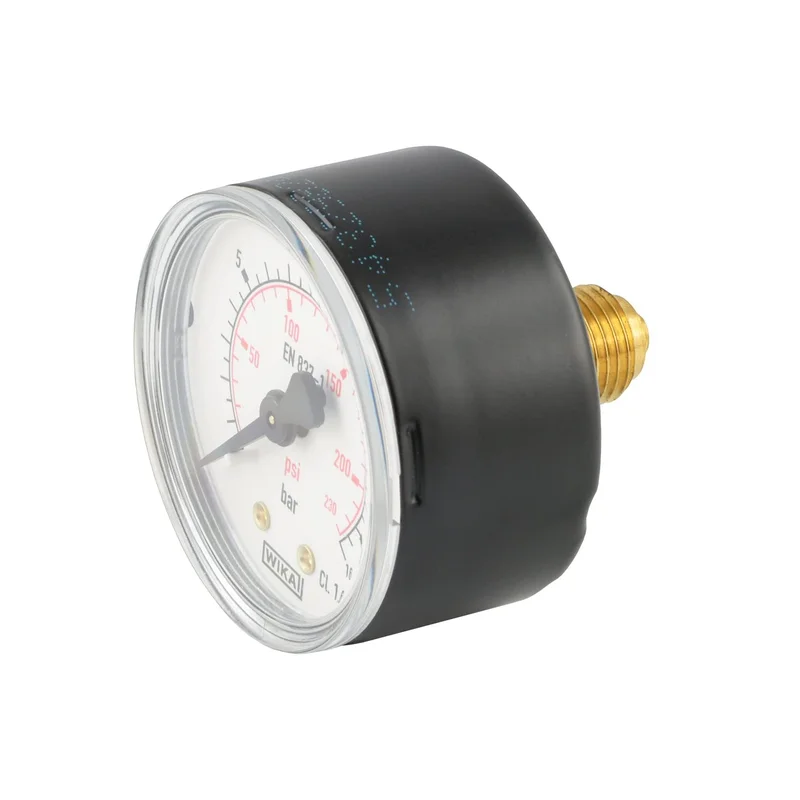

Fittingteile – Horizontal pressure gauge 40, 50, 63 mm – Class 2.5 for compressed air and vacuum (diameter 50 mm – display range 0 to 16 bar)-Fast Shipping

Description

Materials: housing: sheet steel black, measuring system, connection and pointer mechanism: brass, viewing pane: plastic, crystal clear

Thread size: G 1/4 inch (in mm: 13.2 mm) – with centring pin for profile sealing ring

Class: 1.6 // Protection class: IP 42

Temperature range: -20 °C to +60 °C, measuring material: max. +60 °C

Dial: 1. Scale outside (black), display in bar, 2. Scale inside (red), display in PSI
