Geekworm KVM-A3 Kit for Raspberry Pi 4 Open Source KVM Over IP Compatible with KVM V3 Platform Only (Unassembled and Not Include Raspberry Pi 4/SD Card/Power Adapter)-Fast Shipping

Description

What is itThis kit allows user to realize a PiKVM / KVM project with raspberry pi 4 which can control a computer using a web browser!

Compatiblityfor use with Raspberry Pi 4 Model B 8GB / 4GB / 2GB / 1GB only, the metal case only support Raspberry Pi 4.

FunctionRemotely turn on/ turn off / restart your computer; configure configure the UEFI/BIOS; reinstall the OS using the Virtual CD-ROM or Flash Drive; remote use your keyboard and mouse; Simulate a keyboard, mouse, and a monitor and presented in a web browser, etc.

How to PowerPower Input: 5.1Vdc +/-5% , 3A; Power Via USB Type-C port of X630-A3. (DON’T power via Raspberry Pi’s TYPE-C port, because it is occupied as USB OTG.) Recommend to use Geekworm UL listed 20W 5V 4A USB Type-C power adapter (ASIN:B09J856PND).

Cooling SolutionX630-A3 with a on-board 3007 cooling fan for heat dissaption of Pi4

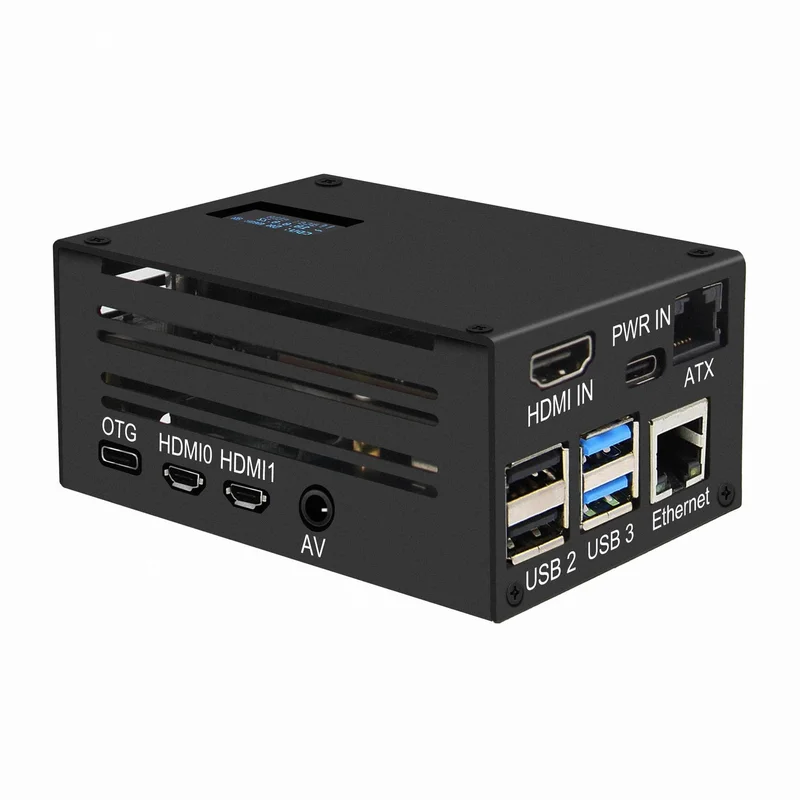

What Included1 x KWM-A3 Metal Case with Accessories, 1 x X630-A3 V1.3 Expansion Board with Accessories, 1 x X630-A5 V1.0 Adapter Board with Accessories, 1 x X630 HDMI to CSI-2 Module with Accessories, 1 x Ethernet Cable(1m length), 1 x0.96 inch OLED Module

Extra NeededRaspberry Pi 4, TF Card, HDMI Cable, Power Adapter
