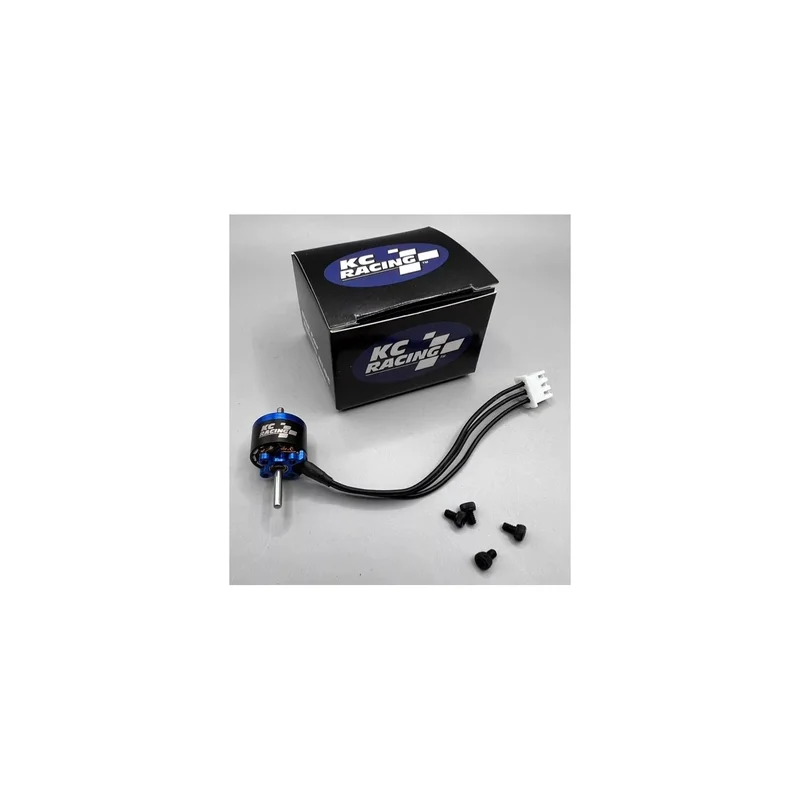

Brushless Motor (BLDC) for Slot Car – 6500KV (Gen 2)
Application – Road Course
What is new in the Gen 2? There is an added ‘strap’ to the motor base to maintain clearance between the motor wiring and the rotating magnet bell. Also, there is addition of an XH 2.54 3P male connector the end of the wiring. Future ESC wiring will eliminate soldering on the ESC and provide a plug n play option.
Join the brushless revolution in slot car racing. KC Racing has partnered with a world leading manufacturer of BLDC motors to develop an outrunner brushless motor specifically suited for slot car installations. Completely built and tested by the manufacturer this motor receives the rigorous testing of the factory to insure quality and consistency. Certifications of CE and ISO 9001:2015
Weight: 7.4g (including wires)
Motor Size: 14.3mm x 13.7mm
Stator Diameter: 11mm
Stator Height: 6mm
Pinion Shaft Diameter: 2.0mm x 10.00mm long
Minimum clearance for snap ring on pinion side: 5mm
Rotor Side Shaft Diameter: 2.00mm x 6.0mm long
Motor Mounting: 9mm x 9mm
Motor Cable: 26#AWG 80mm long With an XH 2.54 3P male connector on the end of the wiring.
NSK Bearings
7075-T6 Aluminum Bell
Multicolor color design
Volts – 16v
Temperature range – 0- +80C (32 – +176F)
RPM @ 12 vdc
6500 KV – 78,000rpm
Includes four (4) M2x3mm Allen Head Cap Screws for mounting.
