Description

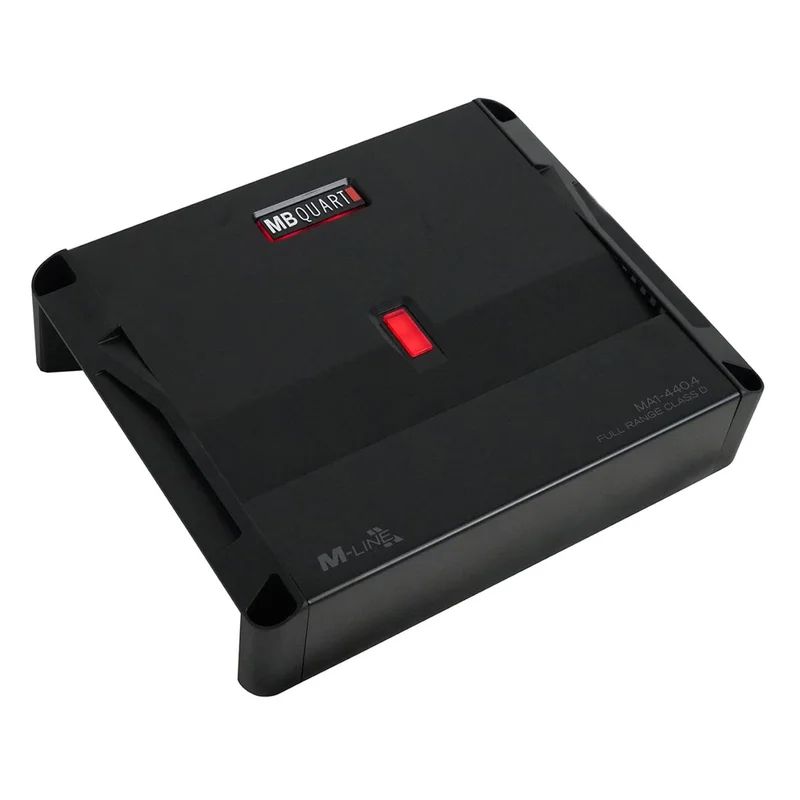

Low Noise Preamplifier Circuit: Q-Stasis Pre Amplifier Stage: Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion. RCA Inputs: Nickel Plated: High temperature impact resistant nickel-plated RCA inputs that allow for secure connections and is erosion resistant. Operation Mode: 4 channel operation mode allows either stereo or mono bridged operation. Crossover Type: Variable electronic crossovers allow for complete control of the sound.
Electronic Equalizer: Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier. Class / Topology: Class Q1 (Class D): MB Quarts Class Q1 offers the efficiency of todays D-Class with increased engineering to focus on sound quality from the power supply through the output devices, the FLUID-FETS. Output Device Technology: FLUID-FETS: MB Quart output devices,
FLUID-FETS are painstakingly selected for their ability to efficiently produce power and mimic the sound quality of the highest end home amplifiers. Heat Sink: Heavy duty heat-sink efficiently moves heat from the MOSFET where it can be cooled. Power Supply: Rugged MOSFET Pulse Width Modulation power supply: Allows amplifier to product efficient power without taxing the vehicle electrical system.
Output Connections: Heavy duty connections allow for secure electrical signal to pass into wiring and resist erosion which will add longevity to the amplifier. Connection Type: Secure connection for all power, ground and speaker connections. Full Range Digital: YES, Amp Class: Class D, Amp Total Channels: 4, Amp Max Power (watts): 440, Amp Power @ 1 Ohm (ch x watts): N/A, Amp Power @ 2 Ohms (ch x watts): 4 x 110, Amp Power @ 4 Ohms (ch x watts): 4 x 75
Amp Crossover: Variable Electronic 12dB Per Octave, Amp Variable High Pass Crossover 12dB per Octave: 50Hz-3kHz, Amp Variable Low Pass Crossover 12dB per Octave: 50Hz-3kHz, Amp Tone Control / Parametric EQ: N/A, Amp Bass Boost: 0-9dB, Amp Variable Voltage: 0.2-6V, Amp Frequency Response: 20Hz-20kHz, Amp Total Harmonic Distortion (THD): < 0.02%, Amp Speaker Level Audio Inputs: Yes, Amp Power Terminal 12v/GND: 4 AWG, Amp Speaker Terminal Wire Gauge: 12 AWG, Amp Fusing: 2 x 25A,
