Simpson Strong-TieHGAM10KTA
Loads have been increased for wind or earthquake loading with no further increase allowed. Reduce where other loads govern.
Allowable loads are for one anchor. A minimum rafter thickness of 2 1/2″ must be used when framing anchors are installed on each side of the joist and on the same side of the plate.
The HM9KT and HGAM10KTA are kits with (20) HM9 and (10) HGAM10 connectors packaged with Simpson Strong-Tie®Strong-Drive® SDS screws and 2 1/4″ and 2 3/4″ Titen® screws respectively. (1 3/4″ Titen® screws for concrete installations sold separately.)
See Titen® screw information.
Table allowable loads were determined using test ultimate/3 or fastener calculation values.
Products shall be installed such that the Titen screws and Titen HD® anchors are not exposed to the weather.

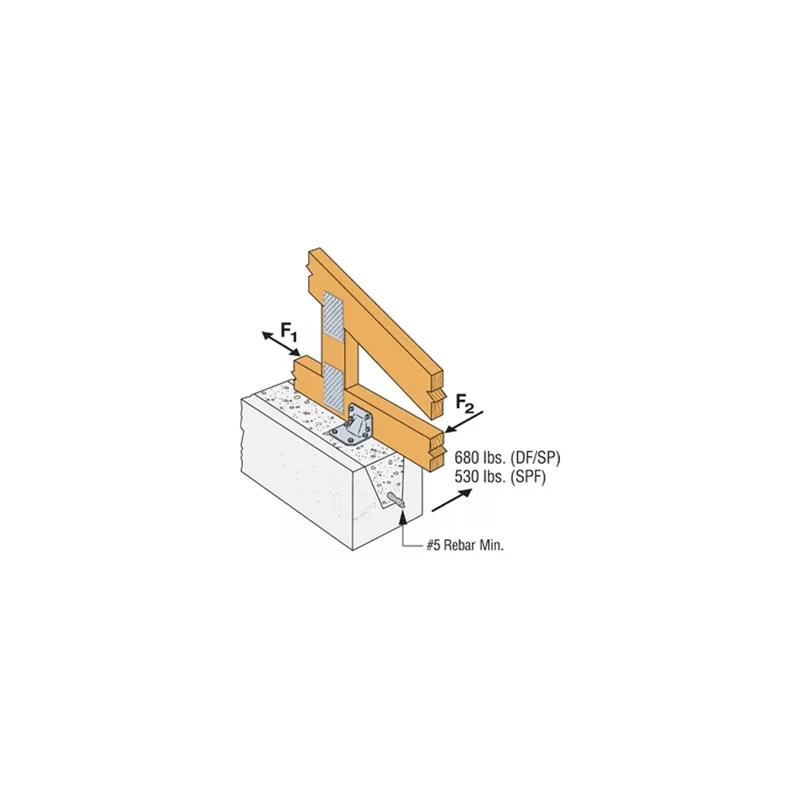

HGAM10 F2 loads are for forces into the connector. See illustration 2 for loads away from the connector.
LTA2 allowable uplift on SP is 1425 lbs. for perpendicular to wall installation and 1390 lbs. for parallel to wall installation.
NAILS: 10dx1 1/2 = 0.148″ dia. x 1 1/2″ long. 8dx1 1/2 = 0.131″ dia. x 1 1/2″ long. See other nail sizes and information.
