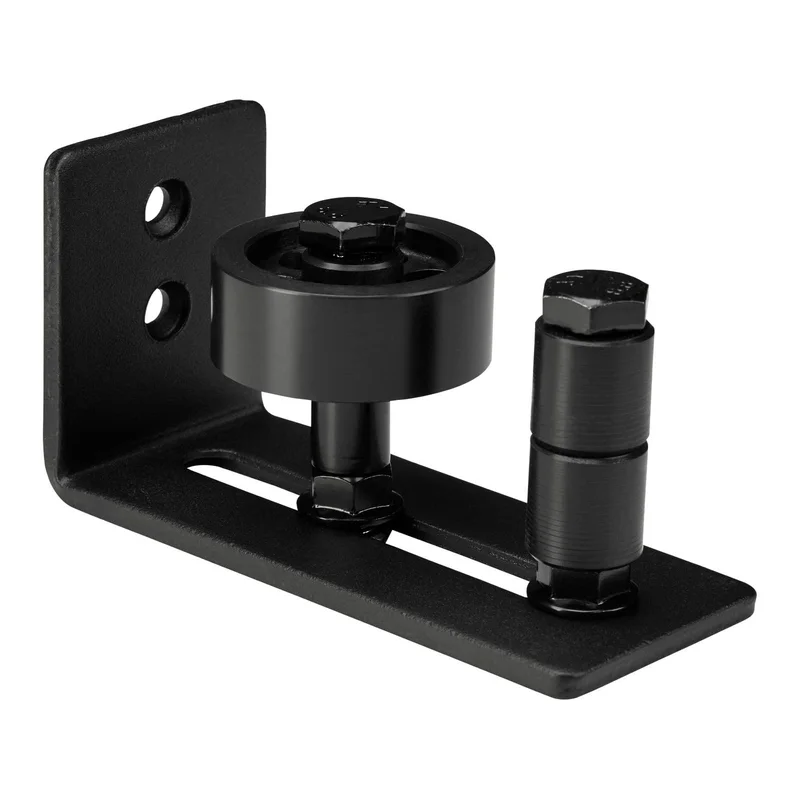

SOTECH sliding door floor guide ST-BF-02 / The sliding door floor guide ST-BF-02 from SOTECH is simply mounted on the wall. Mounting directly over the floor is possible by countersunk locking nuts. Thanks to its compact design, the high-quality floor guide does not distract from the look of the door and the upper sliding door fitting.
Product features: material: metal with rollers made of polymer, surface: black, easy wall mounting without milling into the door, quiet, protects against scratches on the door, with adjustable wheels at the front and back
Dimensions: height: 68 mm, width: 52 mm, length: 120 mm, for door thickness: 0 – 65 mm, for further dimensions please refer to the drawing
Installation: First, the drill holes are marked at the desired place. In the second step, the holes are drilled and then the dowels are pressed in. After the floor guides are mounted, the front and rear rollers are adjusted to the appropriate door thickness. Depending on the door thickness, the narrower or wider wheels must be used (see illustrated assembly instructions)
Box contents: 1 floor guide including 4 wheels, 4 mounting screws (for rollers), 2 mounting screws (wall mounting), 2 Fischer dowels and 1 wrench
