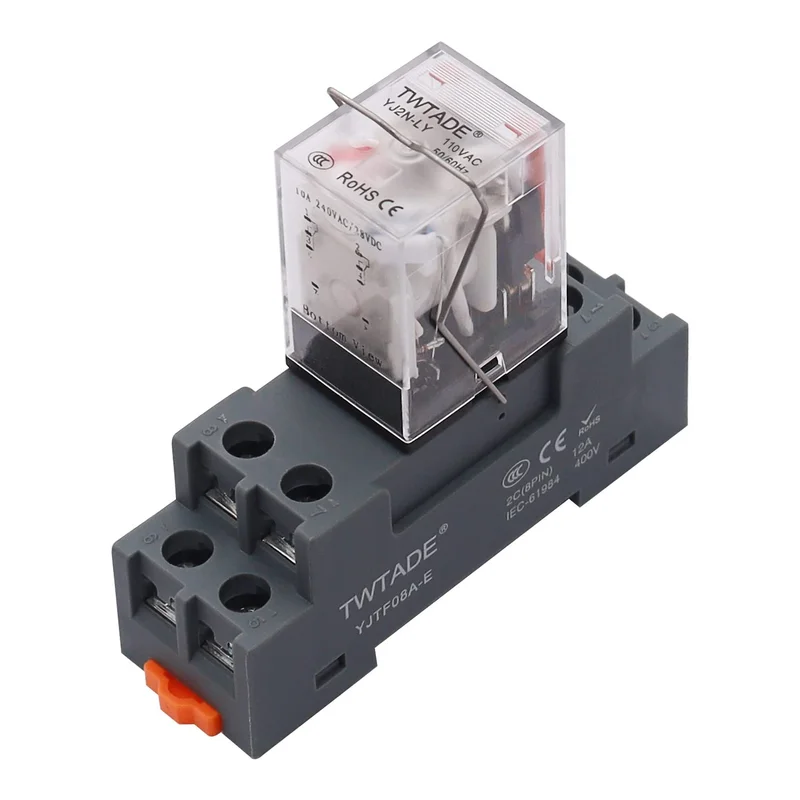

TWTADE AC 110V/120V Relay 10A Electromagnetic Power Coil Relay 8 Pins DPDT 2NO2NC with Indicator Light and Socket Base -YJ2N-LY-Fast Shipping

Description

Product Name: Electromagnetic Relay; Model No. : YJ2N-LY; Socket Model No. : YJTF08A-E; Wiring description For example: 1,3,5 This contact, 3 and 5 are normally open, 1 and 5 are normally closed.

Coil Voltage: AC 110V; Contact Capacity: 10A 240VAC /28VDC Type: DPDT(2NO 2NC); Pin: 8 Pins; Mount Type: 35mm DIN Rail

Relay Size: 2.6 x 2 x 3.5cm / 1″ x 0.8″ x 1.4″ (L*W*H); Socket Size: 7.7 x 2.4 x 2.7cm /3.03″ x 0.94″ x 1″ (L*W*H);Total Height: 6.5cm / 2.5″

Net Weight: 81g; Main Color: Black, Clear; Indicator light: AC Coil: Red lamp, DC Coil: Green lamp; Indicator light: It can be seen whether the coil is energized.

Package Content: 1 x Electromagnetic Relay + 1 x Socket + 1 x Base hook
